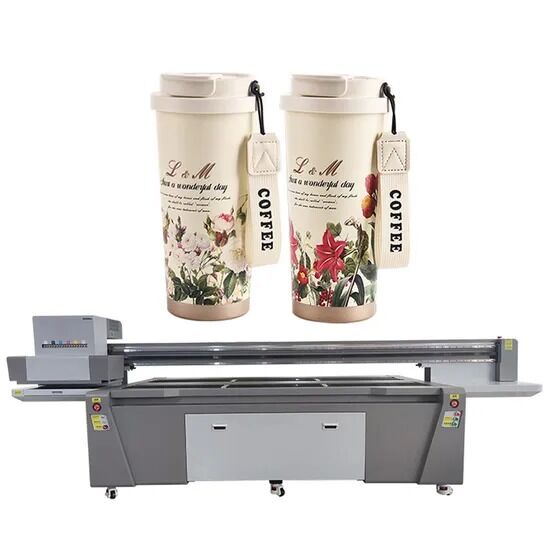

Digital Best Screen Cylinder Technology Taper Stickers for Bottle Glass UV Printer
Product Features
- High Precision: 3.5pl droplet size provides optimal throughput and print quality for various applications
- High Pixel Resolution: Customizable inkjet schemes for different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states to prevent ink curing blockages
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Effective Orifice |
1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Company Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services. With over 10 years of UV printer manufacturing experience, we've received positive feedback from clients worldwide and export to France, Germany, Vietnam, India, and other countries. Our products are certified with CE and RoHS standards.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: Printers with white ink function offer unlimited media compatibility. White ink enables high-quality graphics on hard or soft materials like acrylic boards or backlit films, and can serve as a primer for non-white materials. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating, fading, and blistering issues while saving significant working hours. Suitable for rigid identification boards, hard cardboard, corrugated boxes, and specialty markets including glass, tiles, wood, and furniture.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
A: Our experienced technical team provides comprehensive support for all customers, including operational training until full proficiency is achieved. We also offer international technical support with on-site testing and repair services when needed.
Q5: Regarding printer maintenance
A: We recommend daily ink purging when starting the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
A: We are a manufacturing factory, enabling us to provide competitively priced printers with high-quality services.
