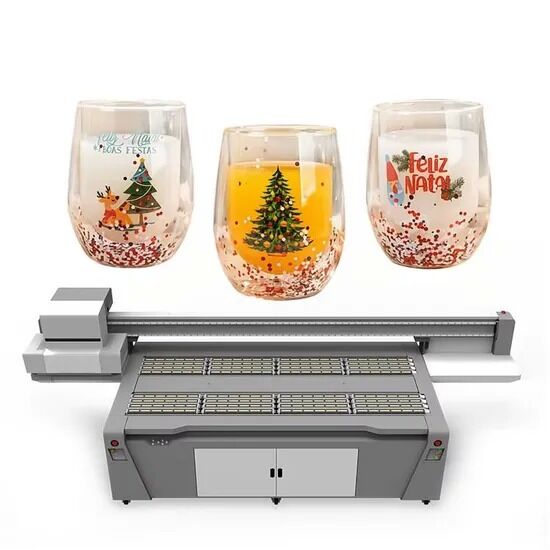

High Drop Printing Digital Screen Cylinder Taper Inkjet Bottle Glass UV Printer 2510
Key Features
-
High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality, suitable for diverse applications.
-
High Resolution: Customizable inkjet schemes for different printing materials ensure accurate colors, distinct layers, and smooth transitions.
-
Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents blockage from ink curing.
Technical Specifications
| Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective Orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. With ISO certification and strict quality control, we support OEM and ODM services. With over 10 years of UV printer manufacturing experience, we export to France, Germany, Vietnam, India, and other countries. All products carry CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Do I need white ink and varnish ink?
White ink enables high-quality graphics on various materials including acrylic boards and backlit films, and serves as a primer for non-white substrates. Varnish enhances print brightness and extends UV ink fade resistance.
What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, rigid identification boards, hard cardboard, corrugated boxes, glass, tiles, wood, and furniture.
Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
How is the after-sales service?
Our experienced technicians provide comprehensive technical support and training until full operational mastery. International technical support and on-site testing/repair services are available.
Regarding printer maintenance
Daily ink pressing when powered on is recommended. For periods exceeding 10 days of non-use, clean the print head with cleaning fluid and maintain nozzle moisture.
Are you a factory or a foreign trade company?
We are a factory manufacturer, ensuring competitive pricing and high-quality service delivery.
